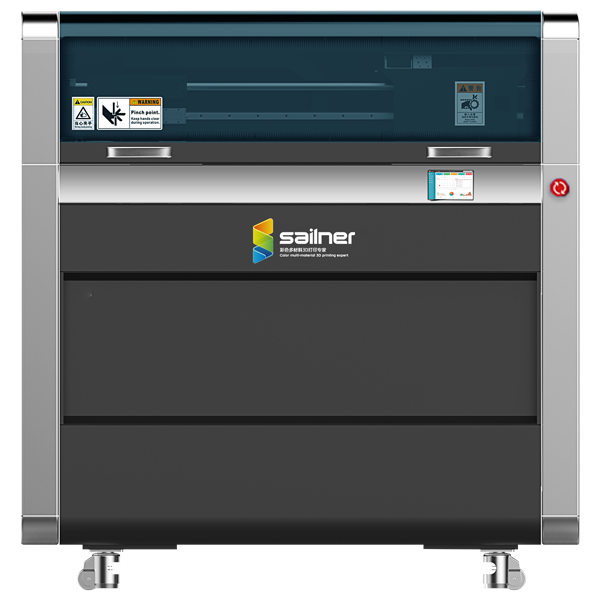

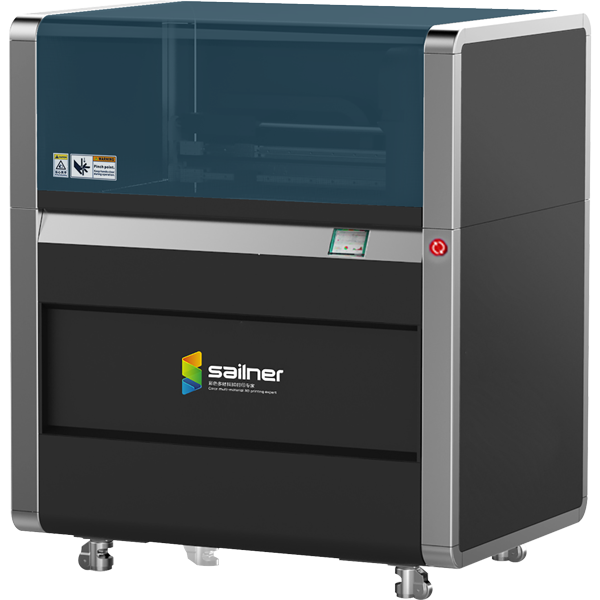

Support high-performance soft and hard composite material printing

  • Support more than 10 million colors color scheme

  • Support 6 kinds of materials mixed printing at the same time

  • 3 sets of high-performance print heads with 3840 nozzles for efficient printing

    Full color printing
    Large forming space
    Texture printing
    High-precision printing
    High efficiency printing
    Mix of 7 materials
    Customized on demand
    Low overall cost

Technical Reference

Basic configurationDetailed introduction
Highest resolution:1200*1200*1800dpi
Print head:3 groups
Printing channel:12 material channels
Number of nozzles:3840 nozzles
Material configuration:7 materials
Maximum forming size:295*295*250mm
Forming platform specifications:300*300*250mm
Printing effect:Full-color printing
soft and hard composite printing
transparent printing
voxel-level texture printing accuracy (less than 50 mm model is 20-85 microns; full-size model is up to 200 microns)
Printing mode:Fast mode 36μm
Texture mode 28μm
Economy mode 28μm
Fine mode 18μm
Super fine mode 14μm
Machine configurationDetailed introduction
physical dimension:1170*860*1235mm
Machine weight:670kg
operating system:Win7 / Win8 / Win8.1 / Win10, 64 bit
Support format:STL, PLY, WRL, OBJ, WJP (dedicated)
Internet connection:LAN ? TCP/IP
Power requirements:AC200-240V 50-60Hz
rated power:1.2KW
Operating environment:Temperature 20-30 °C (64-77 °F);
relative humidity 40-80% (non-condensing)

Detailed parameter download

Material recommendation

  • SUP series
    The materials are support materials, including standard support materials, alkali-soluble support materials, and hot-melt support materials, which provide support for the molding material during the printing process.
  • Medical series

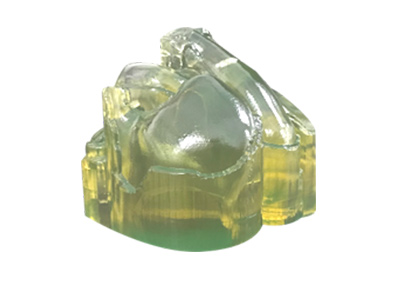

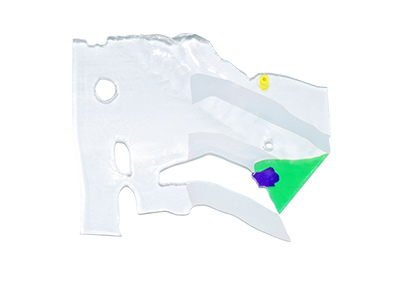

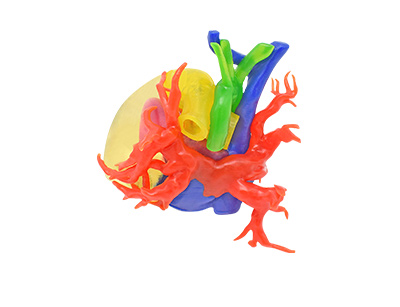

    The materials are medical materials, including dental and biocompatible materials, which can be used in dental and medical guides.
  • FXL series
    The material is a flexible material, including transparent, cyan, magenta, yellow, white, black and other 6 colors, which are divided into standard flexible materials and super soft flexible materials, which can be printed with models of different hardness and functional simulation.
  • ABS series
    The material is ABS-like material, including 6 colors, including transparent, cyan, magenta, yellow, white, and black. It has excellent overall performance and can be used for functional color prototype printing.
  • RGD series
    The material is a universal hard material, including 6 colors of transparent, cyan, magenta, yellow, white, black, etc., which can be applied to the printing of conventional models such as high transparency and full color.

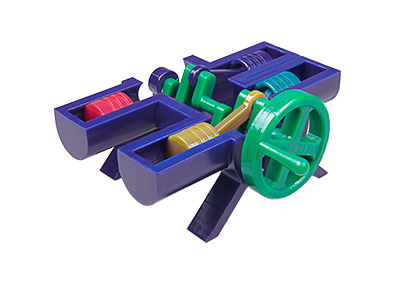

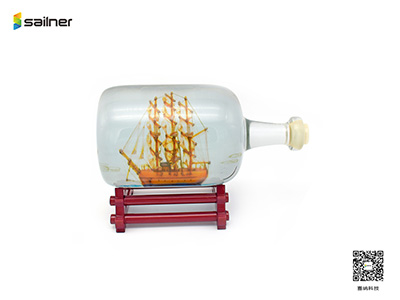

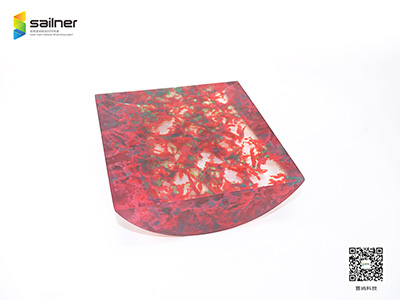

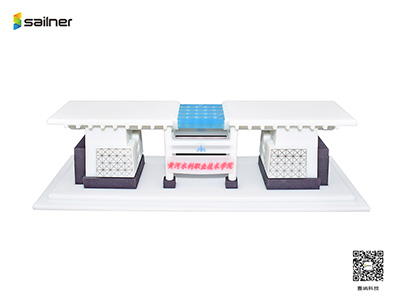

Industry Application
